Micro oval gear flow meter provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed.
Why Choose us ?
Engineers’ team is from Siemens
Siemens CNC machining center
2 national patent technology
More 30 years’ technology accumulation
9 consecutive years as gold supplier for export
Accuracy is higher 40% than counterparts
Range ration is 3~5 times than counterparts
ISO,CE,SGS certificate
Max pulse ratio : 40000 P/L
Max working pressure: 1000bar
Gear and shaft can be changed by yourself
Chinese Academy of Sciences Supplier
benchmarking enterprises in Auto control&process instrument.
Mainly using conditions for Micro Oval Gear Flow Meter
| hydraulic system | precision dosing | 2 and 3 component application |
| process control | open/closed loop control | corrosive chemical dispensing |
| water treatment | additive injection | automobile industry |
| system monitoring | laundry chemical | plastic technology |
| print process | chemical batching | chemical packaging and blending |
| ratio control | consumption measurement | oil metering |
| metering plant | hydraulic test stand | batching control |
| lacquering plant | 2 component plant | flow rate measurement |
| dosing | Odorisation | closed-loop management |
Mainly medium for Micro Oval Gear Flow Meter
| water | gum | chemicals | fluid |
| oil | dyes | liquid | adbrasive adhesive |
| grease | petrochemicals | isocyanate | two-component mixers |
| paints | adhesive | ink | waterbased liquid |
| skydrol | brake fluid | hydraulic oil | sealant |
| gear oil | low viscosity | lubracating | methylbenzene |
| Diesel | Methanol | methyl alcohol | medium viscosity |
| polyol | high viscosity | offset ink | Toluene |
| lacquer | low lubricity | resin | Pharmaceuticals |
| solvent | cavity wax | wax | clear lacquer |
| glycol | glycerin | sodium hydroxide | caustic soda |
| ethylene | diethylene | triethylene | propylene |
| corn oil | cocoanut oil | molasses | bhylene |
| palm oil | olive oil | lard oil | cotton oil |
| soy bean oil | rosin oil | rape seed oil | dimethylthylsufid DMS |
| additive | syrup | sugar | electrohydrodynamic |
| liquefied gas | perfume | aromatic substance | pharmaceutical |
| peanut oil | fluid food | thioether | tetrahydrothiophen THT |
| acryiat-composite | Thiol | mercaptan | mercaptan-composite |
PERFECT UNDER DETAILS
| Accuracy | 0.5% or 0.3%, |
| Temperature | -30~80°C(customized) |
| Pressure | 32bar(customized) |
| Output | square-wave pulse |
| Supply | 4-26VDC |

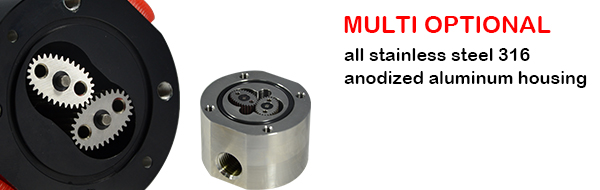

| Material | chamber:SS316L or anodized aluminum |
| Model | Flow range | Connection |
| CX-M2-SS/AL | 0.5~150 ml/min | G1/8 female thread |
| CX-M3-SS/AL | 1-300 ml/min | G1/8 female thread |
| CX-M5-SS/AL | 5-1000 ml/min | G1/8 female thread |
| CX-M6-SS/AL | 0.5-100 l/H | G1/4 female thread |
| CX-M9-SS/AL | 5-550 l/H | G1/4 female thread |
| CX-M12-SS/AL | 1~30 L/min | G1/2 female thread |
| CX-M25-SS/AL | 5-110 l/min | G1 female thread |
| CX-M40-SS/AL | 10-250L/min | G1 1/2 female thread |
| CX-M50-SS/AL | 10-500L/min | G2 female thread |
