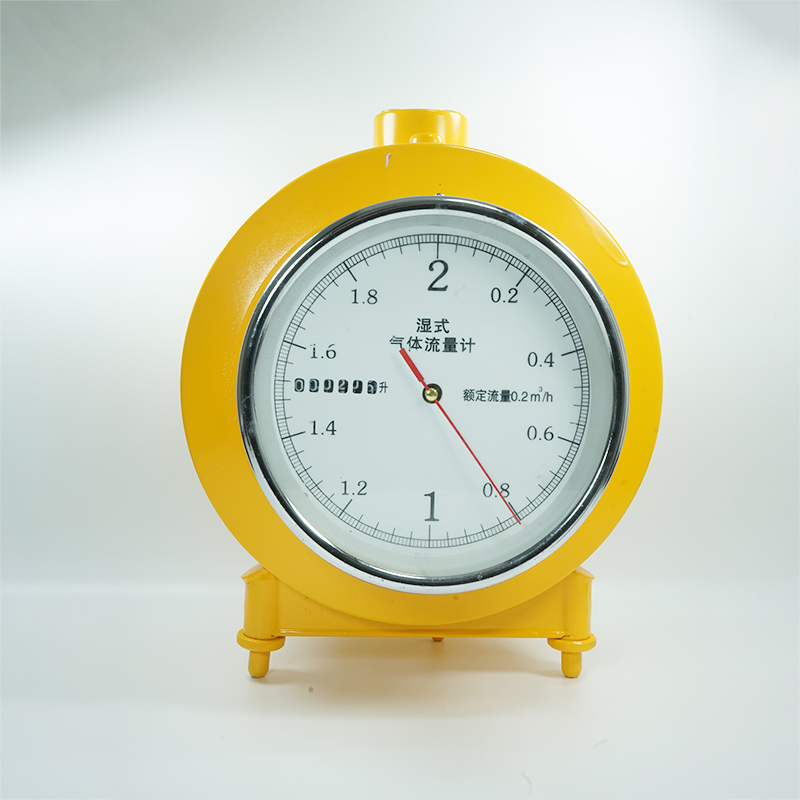

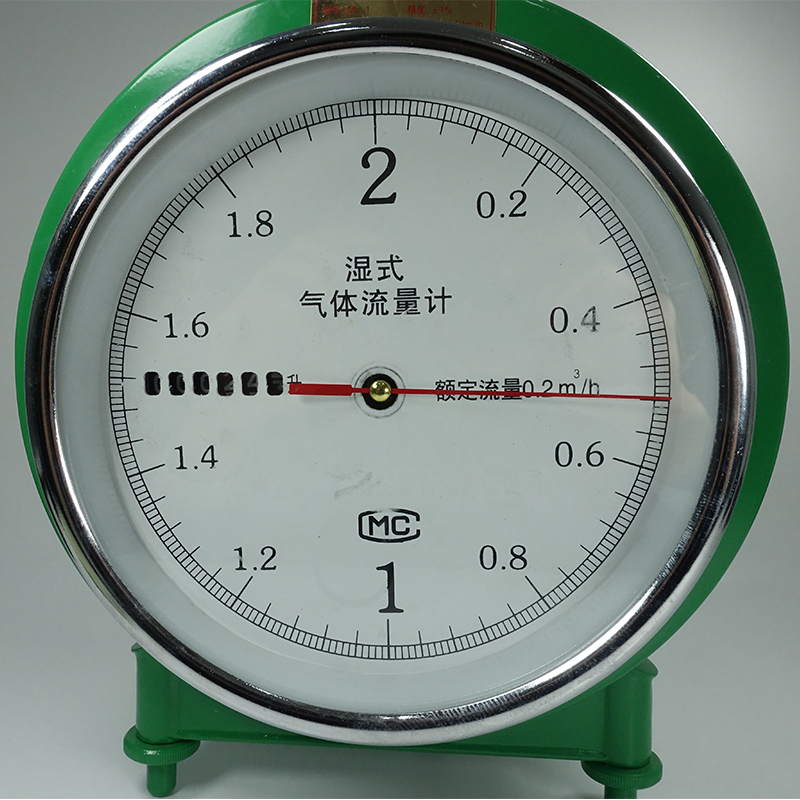

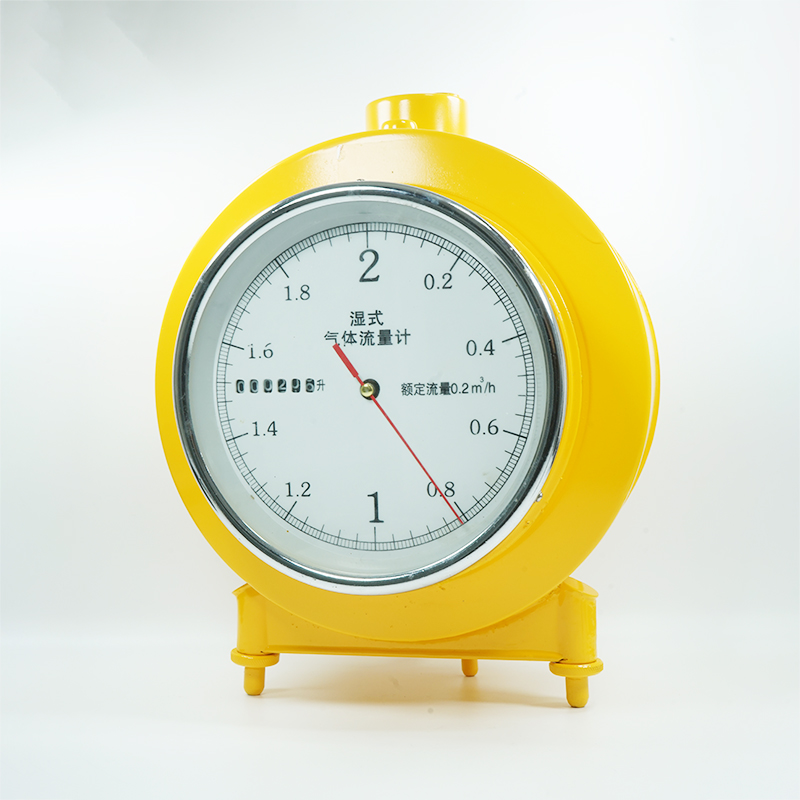

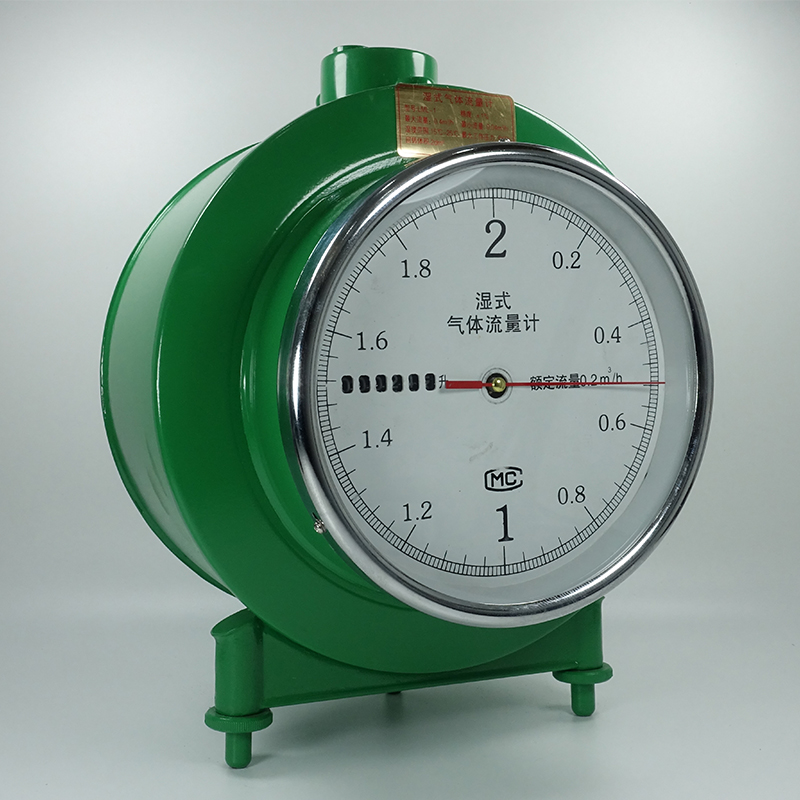

Wet Hydrogen Gas Flow Meter
A.[Features of wet gas flow meter]
High accuracy
At a confidence probability of 0.95, the expanded uncertainty is 0.2%, 0.5%;
Normal Temperature
Does not require strict temperature, can be used at room temperature;
Easy use
Intuitive readings, easy to use
Output
With pulse transmission mechanism, it can be easily connected with the microcomputer to achieve automatic detection.
Longer working life
Made of stainless steel or preservative-treated material for long life.
B.[Parameters]
| Parameters-Wet gas meter | |
| Model | LML/F;BSD/BSDF |
| Medium | Various gas |
| Rated flow | 200;500 |
| Total flow | 999999 |
| Overload flow | 300;750 |
| Pressure | 10000pa |
| Accuracy | 1.0% |
| Weight | 4.5~6.0kg |
| Min scale | 0.008;0.02L |
| Diameter | 266*220*335;310*220*335 |
C.[Operate methods]
1.put flowmeter on the table,adjust the leveler to keep using.
2.Open the water level control nuts and pull out internal yarn inject distilled water into the jack.
3.Once the water flow out the level control,pls stop to inject the water,when excess water flow out cleanly from the water level control,tp pack the rope into the water level control and tighteen nuts
4.installed the thermometer and pressyre gauge,
5.connecte the tube
6.Open the valve,the flow meter start pre-operating,several minutes,could recording the data.
