The product description

Electromagnetic flowmeter suits for all kinds of liquids¡¯ flow measuring such as electronic conductivity liquid, mud and slurry etc. on the basis of its min. conductivity. The result cannot be affected by temperature, pressure, viscosity a

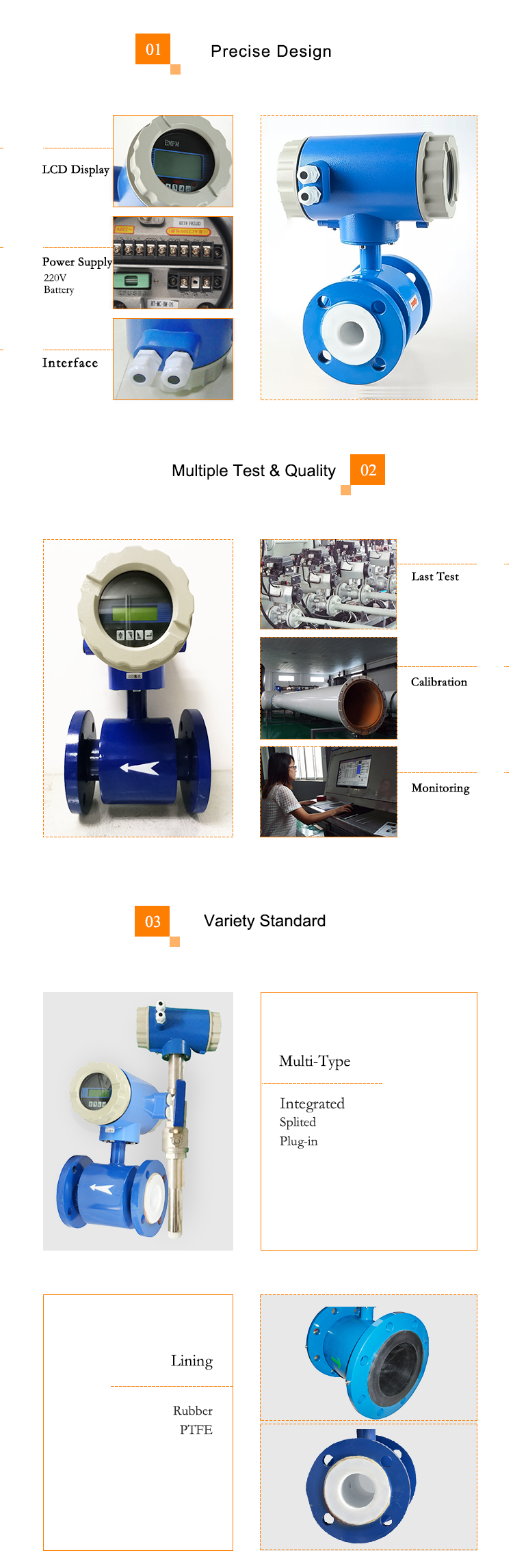

Product overview


Electromagnetic flowmeter

A.[Feature of magnetic flow meter]



Various kinds of meidum

Prefessional for conductivity liquid,such as corrosive liquid;mud and slurry,water,waste water ec.



Various kinds of Output

The 50mm water flow meter with pulse;4~20mA and RS485 output optional



Various kinds of type

The irrigation water flow meter have three types,integrated,Split and Plug-in



Various kinds of Lining and Matereial

The 2 inch water flow flowmeter have PTFE,Rubber Lining and cast steel;stainless steel body material

B.Application
l The main application area;
l Pure water, sewage water
l Electronic manufacture and assign
l Chemistry and industrial medicine
l Food industry
C.Feature
l No move assembly, no abrasion
l Measuring range rate: 1£º100
l No flow enhance equipment
l Suits for various of electronic conductivity liquid
l No affect from temperature, viscosity, pressure and density
l Anti-corrosion
l Measure both to and reverse flow
l Huge display, easy operate
l Long-term EEPROM to save data when lose power
l Support MODBUS/HARTcommunication protocal
l Wide working volts range
l Self diagnose

Technical spec
Display               reaches 8element liquid crystal display, current clock to indicate flow data. two kinds of units to choose£ºm3 or L¡£
Structure              inserted style, compact type or separate type
Measuring medium     liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
Range                0.05m/s¡«12m/s
Accuracy              range between 0.1m/s¡«10m/s can be 0.5%
DN£¨mm£©           6mm~2000 mm
PN                   PN6£¬ PN10£¬PN16£¬PN25,PN40£¬PN63£¬PN100£¬PN160£¬PN250,PN420 optional
Output signal         4~20mA or frequency
Communication       RS485£¬support MODBUS protocol (not standard)¡¢ support HART(option)
Connection           DN6~DN2000  flange connection
Connection standard  suits for all kinds of flange standard£¨eg£ºBS EN1092-1£©
Standard             accuracy apply to EN1434-1£º2003 standard
CE certificate         apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1£º2006 radiation standard (express apply to  BS EN50081-1)
EN 61326-1£º2006 anti-jamming standard (express apply to BS EN50082-1)
EN 61010-1£º2001
Protection grade      compact type for IP65£¬separately type for IP67or IP68£¨optional£©
Power supply         AC86¡«220V or DC24V£¨optional£©
Ambient temperature  5~55¡æ
Ambient huminity      <85 % r.h (noncondensation)


Electromagnetic flow sensor
Sensor’s shell is sealed with carbon steel, only electrode and lining contact with medium.
Flow sensor technical spec
Application area       conductivity fluid such as cold and warm water, pure water and corrosive material etc.
DN(mm)              6mm~~2000mm
PN            PN6£¬PN10£¬PN16£¬PN25£¬PN40£¬PN63£¬PN100£¬PN160£¬PN250£¬PN420
Electrode material    316L
Lining material      PTFE or customize
Medium tem    0~70¡æ£¬max is  180¡æ
Shell material        carbon steel
Protection grade   IP65¡¢IP67   and IP6
Connection     all applys£¨eg£ºBS EN1092-1£©


Flange type size spec

DN(mm) Lining material Flow range  ( m3/h ) Size( mm ) Connection size ( mm )
Ne FEP PTFE Normal Min. Max L H B b ¢K n-¢d ¢D
10   ¡ñ   0.7 0.03 2.8 160 254 152 102 65 4-¢14 95
15   ¡ñ   1.5 0.06 6.4 160 254 65 4-¢14 95
20   ¡ñ ¡ñ 2.5 0.11 11 160 254 75 4-¢14 105
25   ¡ñ ¡ñ 3.5 0.18 18 160 254 85 4-¢14 115
32   ¡ñ ¡ñ 6 0.29 29 270 100 4-¢18 140
40   ¡ñ ¡ñ 10 0.45 45 200 280 110 4-¢18 150
50 ¡ñ ¡ñ ¡ñ 15 0.71 71 294 125 4-¢18 165
65 ¡ñ ¡ñ ¡ñ 25 1.19 119 313 145 8-¢18 185
80 ¡ñ ¡ñ ¡ñ 40 1.81 181 326 160 8-¢18 200
100 ¡ñ ¡ñ ¡ñ 60 2.83 283 250 344 180 8-¢18 220
125 ¡ñ ¡ñ ¡ñ 100 4.42 442 372 210 8-¢18 245
150 ¡ñ ¡ñ ¡ñ 150 6.36 636 300 403 240 8-¢22 285
200 ¡ñ ¡ñ ¡ñ 250 11.3 1130 350 460 295 12-¢22 340
250 ¡ñ ¡ñ ¡ñ 400 17.66 1766 400 511 350 12-¢22 390
300 ¡ñ ¡ñ ¡ñ 600 25.43 2543 500 565 400 12-¢22 440
350 ¡ñ ¡ñ ¡ñ 750 34.62 3462 620 460 16-¢22 500
400 ¡ñ ¡ñ ¡ñ 900 45.22 4522 600 675 55 16-¢22 565
450 ¡ñ   ¡ñ 1200 57.23 5723 727 565 20-¢26 615
500 ¡ñ   ¡ñ 1500 70.65 7065 782 620 20-¢26 670
600 ¡ñ   ¡ñ 2500 101.74 10174 782 725 20-¢30 780
700 ¡ñ   ¡ñ 4000 138.47 13847 700 1068 840 24-¢30 895
800 ¡ñ   ¡ñ 5000 180.86 18086 800 1157 950 24-¢34 1010
900 ¡ñ   ¡ñ 6000 228.91 22891 900 1230 1050 28-¢34 1110
1000 ¡ñ   ¡ñ 8000 282.60 28260 1000 1332 1160 28-¢36 1230
1200 ¡ñ     10000 406.94 40694 1200 1592 1340 32-¢33 1405
1400 ¡ñ       553.90 55390 1400 1870 1560 36-¢36 1630
1600 ¡ñ       723.46 72346 1600 2080 1760 40-¢36 1830
1800 ¡ñ       915.62 91562 1800 2300 1970 44-¢39 2045

Converter technical data

Current output 4~20Ma
Frequency output No resource pulse£º
High level=external power supply-1V
External volts≤30 V
Low level≤0.5V
Load current≤50 mA
Max.frequency output :5KHz¡£
Frequency of pulse output: 0~5Hz¡£
Display With 8digit LCD display
Display unit Instantaneous flow units £ºm3 /h£¬ m3 /m£¬m3 /s£¬L/h£¬L/m£¬ L/s£¬G/h£¬G/m£¬G/s¡£ Total flow units: m3£¬L£¬G¡£
Communication MODBUS protocol£¨optional£©or HART£¨optional£©
Protection grade IP65
Power supply 220 V AC +20/-60% £¬50/60 Hz£¬
24 V DC +50/-25% £¬max.10VA
EMC radiation standard EN 61326-1£º2006 (BS EN50081-1)
EMC anti-jimming standard EN 61326-1£º2006 (BS EN50082-1)
CE security EN 61010-1£º2001
Ambient temp. 5~55¡æ
Ambient huminity <85 % r.h. (noncomdensation)

     Remark£º frequency output can set to forward flow(low level) or reverse flow(high level)




Electrode material

Material Symbol Anti-corrosion
SS316L V Suit for industrial water, domestic water, sewage water and other acid liquid etc.
Titanium Ti Suit for Sea water, chloride, hypochlorous
Hoag's alloy C Hc Bears the oxidized acid, like nitric acid, nitration mixture, chromic acid and sulfuric acid mixture. Also bears the oxidized salts or other oxidant environment corrosion. To the sea water, the alkaline solution, the oxide compound solution have the good inoxidizability.
Hoag'salloy B Hb To the sulfuric acid, the phosphoric acid, the hydrofluoric acid and so on non-oxidized acid, the alkali salt have the good corrosion resistivity  ¡£
Tantalum Ta Besides hydrofluoric acid, nearly ability all chemical mediator corrosion. Because its price is expensive, only uses in the hydrochloric acid and the strong sulfuric acid  ¡£
tungsten carbide W Has the outstanding wear-resisting performance, uses in attrition medium specially and so on mud, paper pulp.

Lining material selection

Lining material Anti-corrosion Working temp. Application area
 (Ne) Bears the general low concentration acid and alkali salt the corrosion 0~70¡æ Uses in the process water, the sewage, the low concentration acid and alkali salt brine. May reach most greatly according to the request 95¡æ.
DN50~DN2000 may choose the Ne lining material.
 (FEP) Heat-resisting,the inoxidizability is good, the mechanical strength is high, the anti-attrition performance is good, cleans up when the surface is not easy to damage the inside lining.
-20~180¡æ
 		 Besides the mortar and so on strong wearability medium's all fluids, may use in likely the tap water place hygienic request, may reach most greatly according to the request 180¡æ.
DN6~DN400 may choose the FEP lining material  ¡£
£¨PTFE£© May resist all chemical mediator nearly the corrosion, the wearability is bad  ¡£ -40~180¡æ Cannot use in the negative pressure pipeline and the wearability strong fluid.
DN25~DN1000 may choose the PTFE lining material.
